| Communication | RS-485 | Power Supply | +9 ~ +24VC |
|---|---|---|---|
| Baud rate | Selectable | Contact Rating | AC: 110V@0.6A DC: 24V@2A |
| Weight(g) | 1,780±10g | LED indicator | Power, Tx/Rx, Relay On/Off |
| Channels | 1. 16 Form C Relay Output 2. N.O./N.C. select via Jumper |
Dimension | 180(L) x 231(W) x 62(H) mm |
| Housing Material | Metal |

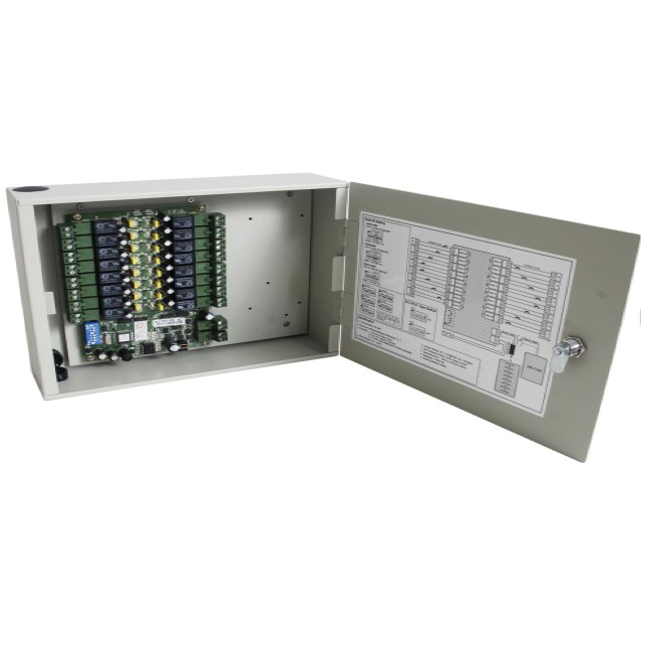

16 Channel Elevator / Output Controller
Features

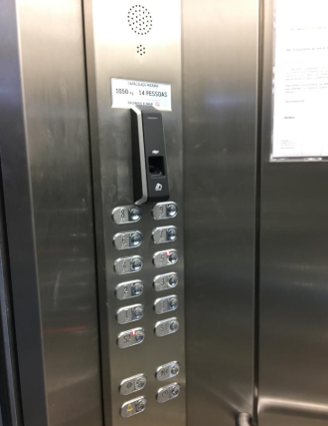

Access up to 64 floors in one elevator
16 Relay outputs per module
Multiple authentication types
Card, Face, Finger
Time Zones, Access Area and user based access control
Multiple Applications
Locker Control
Various Applications

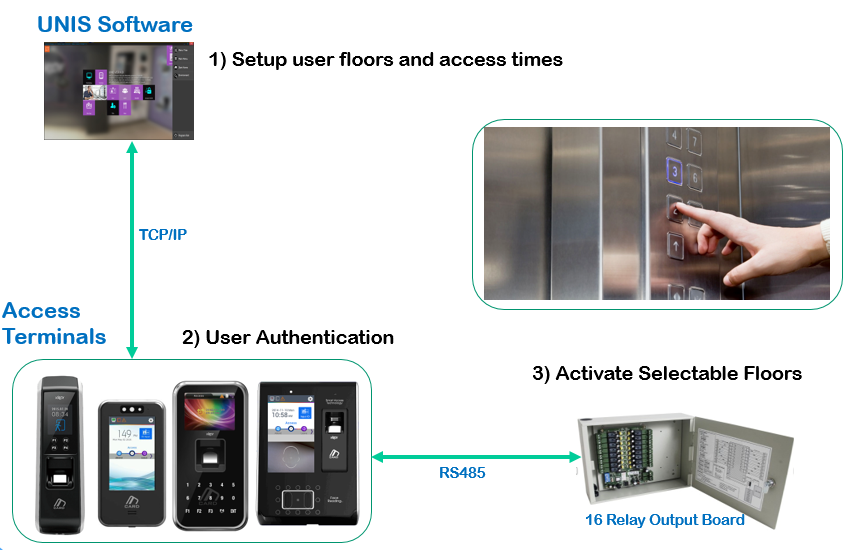

Configuration
