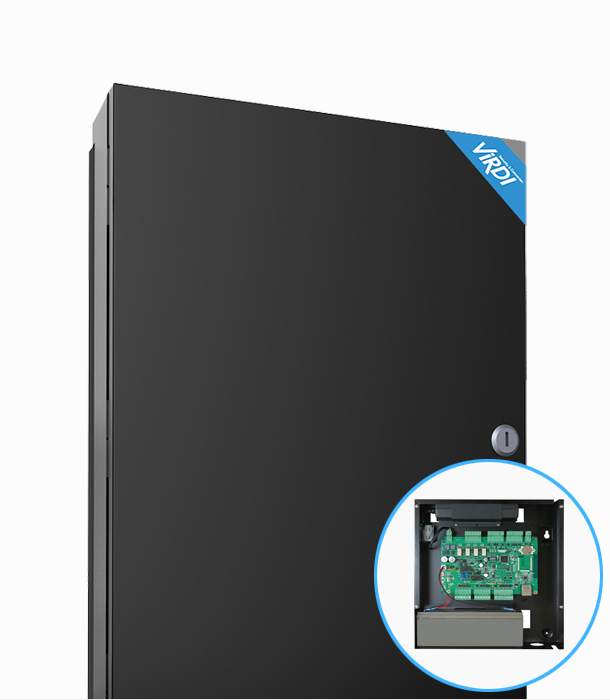

MCP-040

4 Door controller

THE MCP-040 is a 4 Door Controller with an integrated 8 zone Intruder Alarm System.

4 Lock Outputs

Control 4 doors

Remote Setting

TCP/IP Communication to UNIS Server and Web server

Monitoring

Supervised Bell Output

Backup Battery

DC 12V, 7A (Optional)

Configuration

See what’s included in the MCP-040

Specification

Detail Specification MCP-040

CPU 32bits RISC processor (ARM Cortex-M3 Core) LAN 10/100M Ethemet (Auto detecting)
Memory 8MB serial flash Backup Battery DC12V 7A (Option)
Power Adapter DC15V 6A Display Status LED
Operation
Environment
-20 ~ 60℃ / Lower than 90% RH Lock
Interface
4 Locks
Zone Interface 8 Zone (Each port dual use) Bell Interface Monitored bell / siren port (1 port)
Schedules  1,024 Event Logs  51,200
Max Users  50,000 Communication
Port
RS485 Reader port / Wiegand input ports
Programmable inputs / Programmable outputs

.
