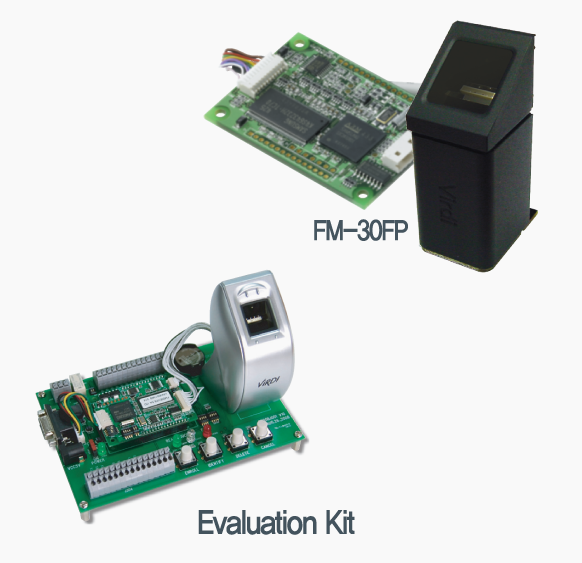

FM-30FP

Fingerprint Recognition Module

Standalone fingerprint modules embedded with top notch proprietary fingerprint authentication algorithm.

Brochure Download

User Manual Download

Optical Sensor

Highly durable and solid optical sensor is embedded for superior performance.

Diverse communication interfaces

FM-30FP comes with diverse communication interfaces including RS-232 (TTL-Level), Wiegand and RS-485 to provide higher flexibility and multiple options.

Diverse external interfaces

FM-30FP can apply to diverse applications by utilizing LED control and IO ports.

Specification

CPU 32 Bit RISC CPU 400MHz Dimension 43(W) X 60(H) X 8(D) mm
Template Capacity 8,000 (2 Template/1 Finger), 16,000 (1 Template/1 Finger) Template Size 400 bytes per template
FRR (False Rejection Rate) < 0.1% FAR (False Acceptance Rate) < 0.0001%
Enrollment Time < 0.7 sec Verification Time < 0.7 sec
Host Communication RS-232 Serial Communication RS-232 (TTL Level), RS-485
Wiegand Interface I In Port, 1 Out Port Programmable I/O 4 input ports, 8 output ports
Power Consumption (mA) Standby: Max 220mA

Operation: Max 450mA

Supply Voltage DC 5V ±0.2V
Operation Environment -20 ~ 70 ℃/ Lower than 90% RH Log Capacity 12,288 Log (Log size = 16bytes)
Encryption Seed Sensor Type Optical
CPU 32 Bit RISC CPU 400MHz
Dimension 43(W) X 60(H) X 8(D) mm
Template Capacity 10,000 templates (4MB)
Template Size 400 bytes per template
FRR (False Rejection Rate) < 0.1%
FAR (False Acceptance Rate) < 0.0001%
Enrollment Time < 0.7 sec
Verification Time < 0.7 sec
Host Communication RS-232
Serial Communication RS-232 (TTL Level), RS-485
Wiegand Interface I In Port, 1 Out Port
Programmable I/O 4 input ports, 8 output ports
Power Consumption (mA) Standby: Max 220mA

Operation: Max 450mA

Supply Voltage DC 5V ±0.2V
Operation Environment -20 ~ 70 ℃/ Lower than 90% RH
Log Capacity 12,280
Encryption Seed
Sensor Type Optical

EVALUATION KIT

Evaluation Kit is a demonstration board to enable users to evaluate the functionality of modules. It can be used with our products, FM-20FP and FM-30FP. Evaluation Kit also provides utility program to help users to test functions such as fingerprint enrollment and authentication.
