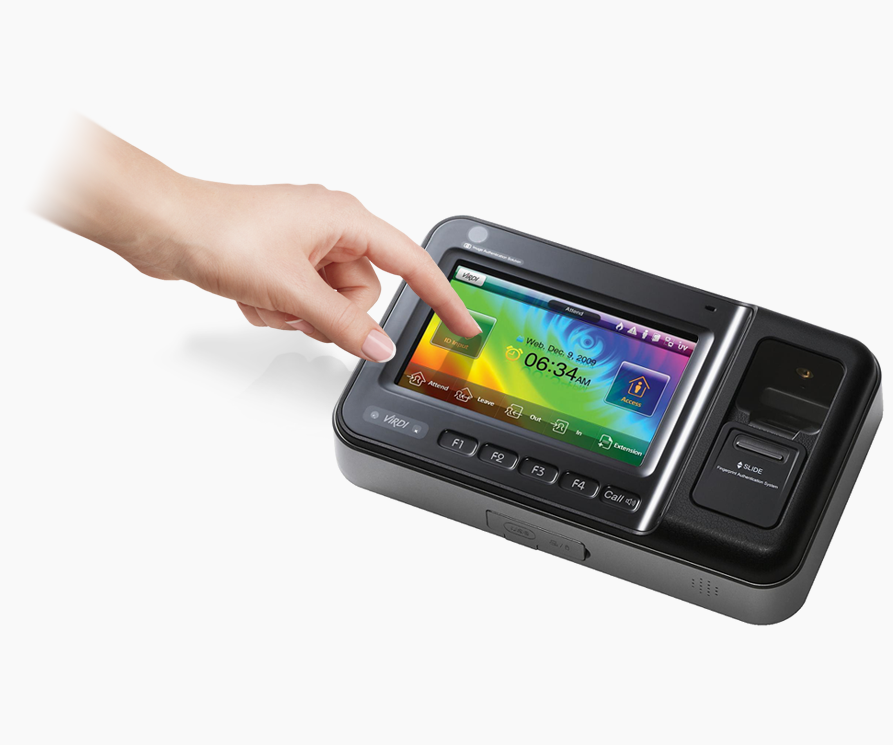

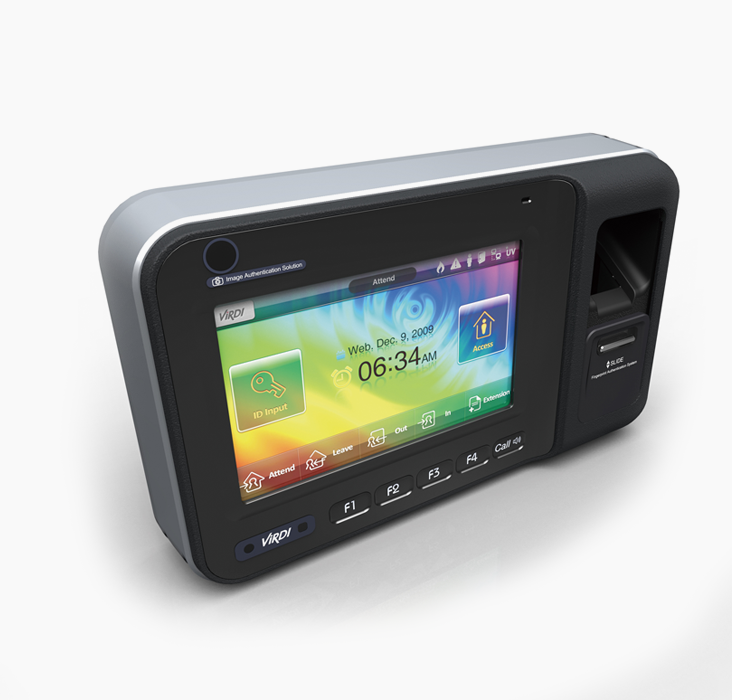

AC-6000

High Performance Fingerprint / Card Terminal

This state of the art terminal embraces the latest technology
with a large color touch screen LCD,
embedded digital camera and extremely fast processor.

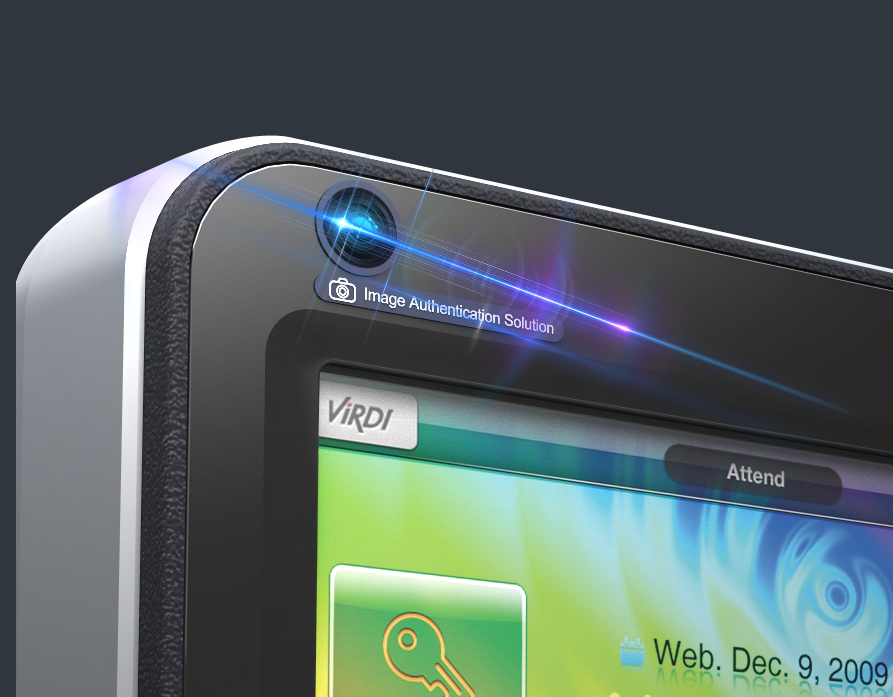

1.3 Mega Pixel Digital Camera

Records a digital image of each user
at the time of the transaction

5 inch Color TFT Touch Screen

Intuitive UI , simplifies operation
User definable screen layout and background.

USB Memory

Transfers configuration settings, images, firmware
and transaction logs using a USB Memory Stick.

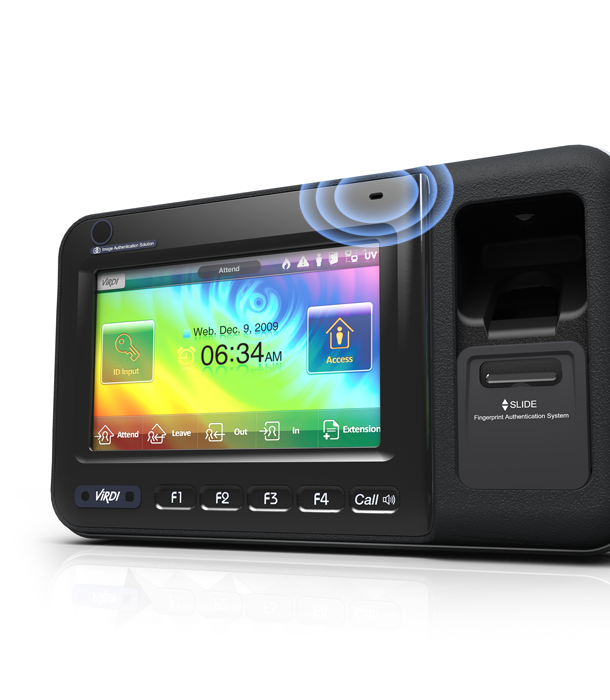

Proximity Sensor

Recognizes the approach of a
user and automatically turns on the
LCD and keypad. Reduces power consumption.

Specification

Detail Specification AC-6000

Authentication Method Biometric
Dust/ Water Resistance X
Memory Max Users 100,000
Fingerprints
(Templates)
100,000(1:1)
30,000(1:N)
Logs 500,000
Images 12,500
Communication With Server TCP/IP
Other USB
Wireless LAN(Wi-Fi) Optional
Wiegand OUT O
RS232 O
RS485 O
Wiegand IN O
Display LCD 5″Color Touch
Backlight O(With Motion Sensor)
Embedded Camera O
Card 125khz-EM O
HID Prox X
HID iclass X
13.56MHz Smart Card O
Keypad Touch Screen
Function keys 4+SOFT
Door Phone O

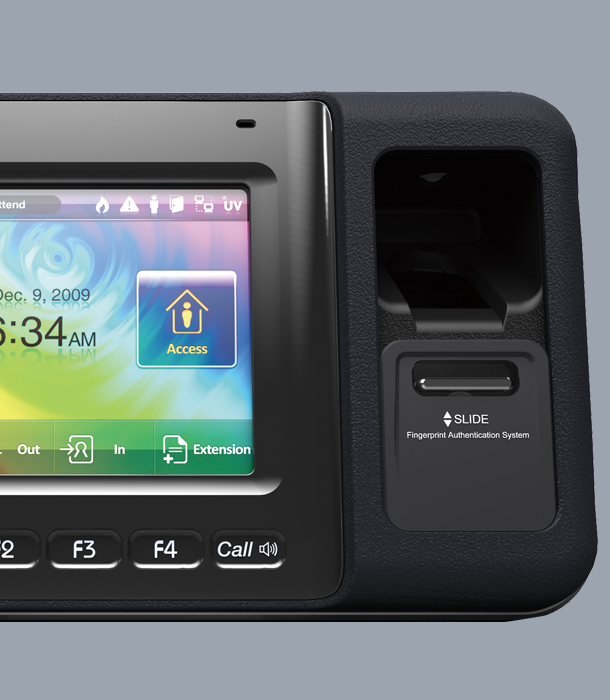

FP Sensor Platen Area 15 X 17 mm
Resolution 500 dpi
Authentication
Speed
(1:1) < 0.5 sec
1:N(1,000) < 1 sec
Dimension (W) X (H) X (D) mm 199.5 X 120.4 X 47
FRR /FAR 0.1% / 0.0001%
Operating Temperature -20 ~ 60℃
