Fingerprint / Card Terminal with Camera & Bluetooth Mobile Key
Fingerprint / Card Terminal with Camera & Bluetooth Mobile Key

2. 8 inch Color Screen

Intuitive UI , simplifies operation
User Customizable LCD Background

Bluetooth Support

·Bluetooth-enabled mobile key solution
·UNIS-B PLUS : App for administrators
·V-CARD : App for mobile key users

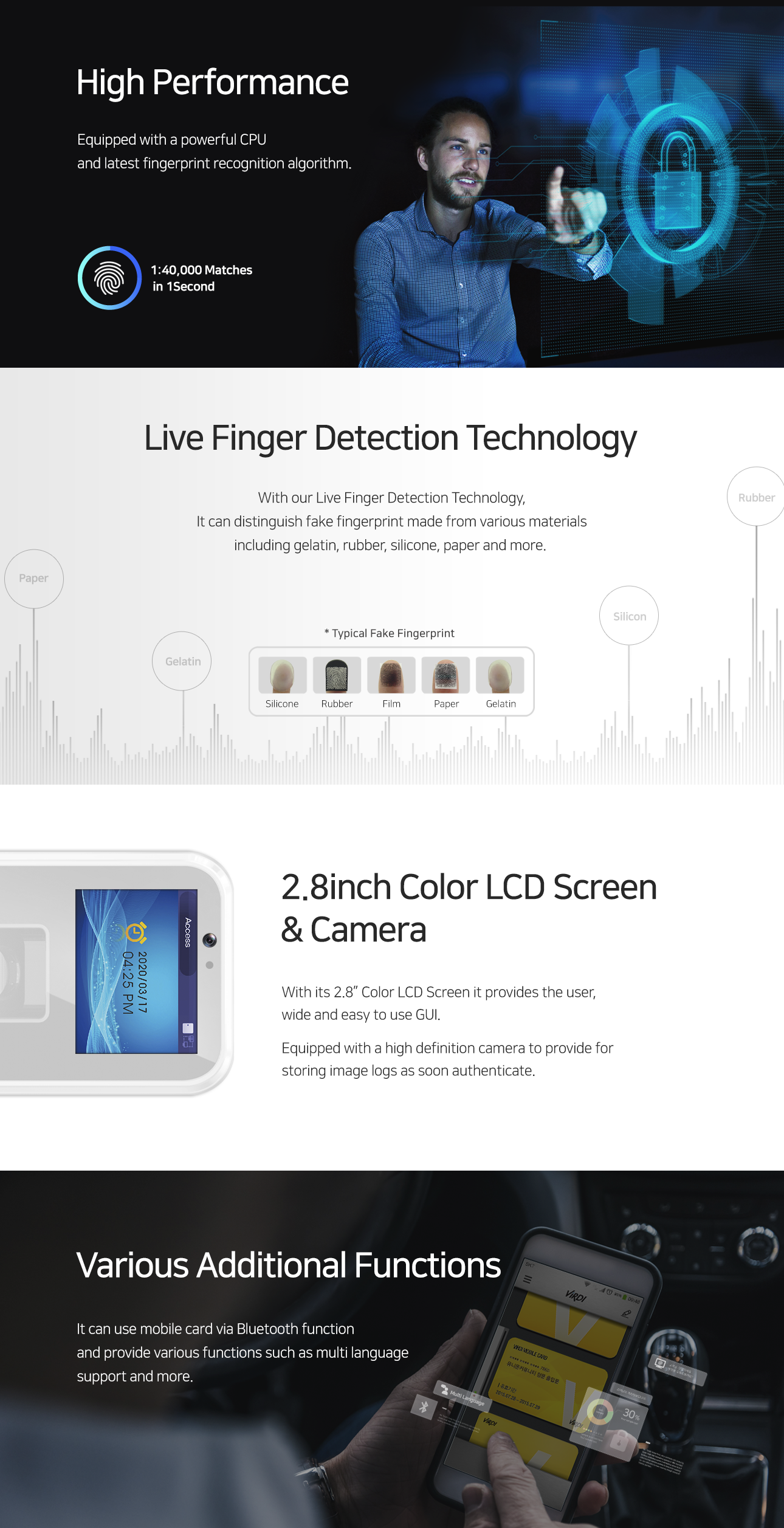

Patented Live & Fake Finger Detection

·Optical sensor and algorithm detect fake fingers (paper, film, silicone, rubber and gelatin)

Multi-Language Support

·Customizable language and menu setting

Built-in Camera

·Capture images based event log data

·Graphic UI and customizable LCD background.

Open Supervised Device Protocol (OSDP)

·communication protocol support that allows peripheral devices to interface with control panels or other security mgmt. systems


Detail Specification AC-5100

Authentication Method Biometric
Dust/ Water Resistance X
Memory Max Users 20,000
Logs 64,000
Images 17,000
Communication With Server TCP/IP
Other Bluetooth
Wireless LAN(Wi-Fi) X
Wiegand OUT X
RS232 O
Wiegand IN O
Display LCD 2.8″Color
Backlight O
Embedded Camera O
Card 125khz-EM O
HID Prox Optional
HID iclass O
13.56MHz Smart Card O
Keypad O
Function keys 10
Door Phone X
FP Sensor Platen Area 15 X 17 mm
Resolution 500 dpi
(1:1) < 0.5 sec
1:N(1,000) < 1 sec
Dimension (W) X (H) X (D) mm 88 X 175 X 43.5
FRR /FAR 0.1% / 0.0001%
Operating Temperature -20 ~ 60℃
