AC-2200/2200(H)

Bluetooth-enabled
Smart Fingerprint Terminal

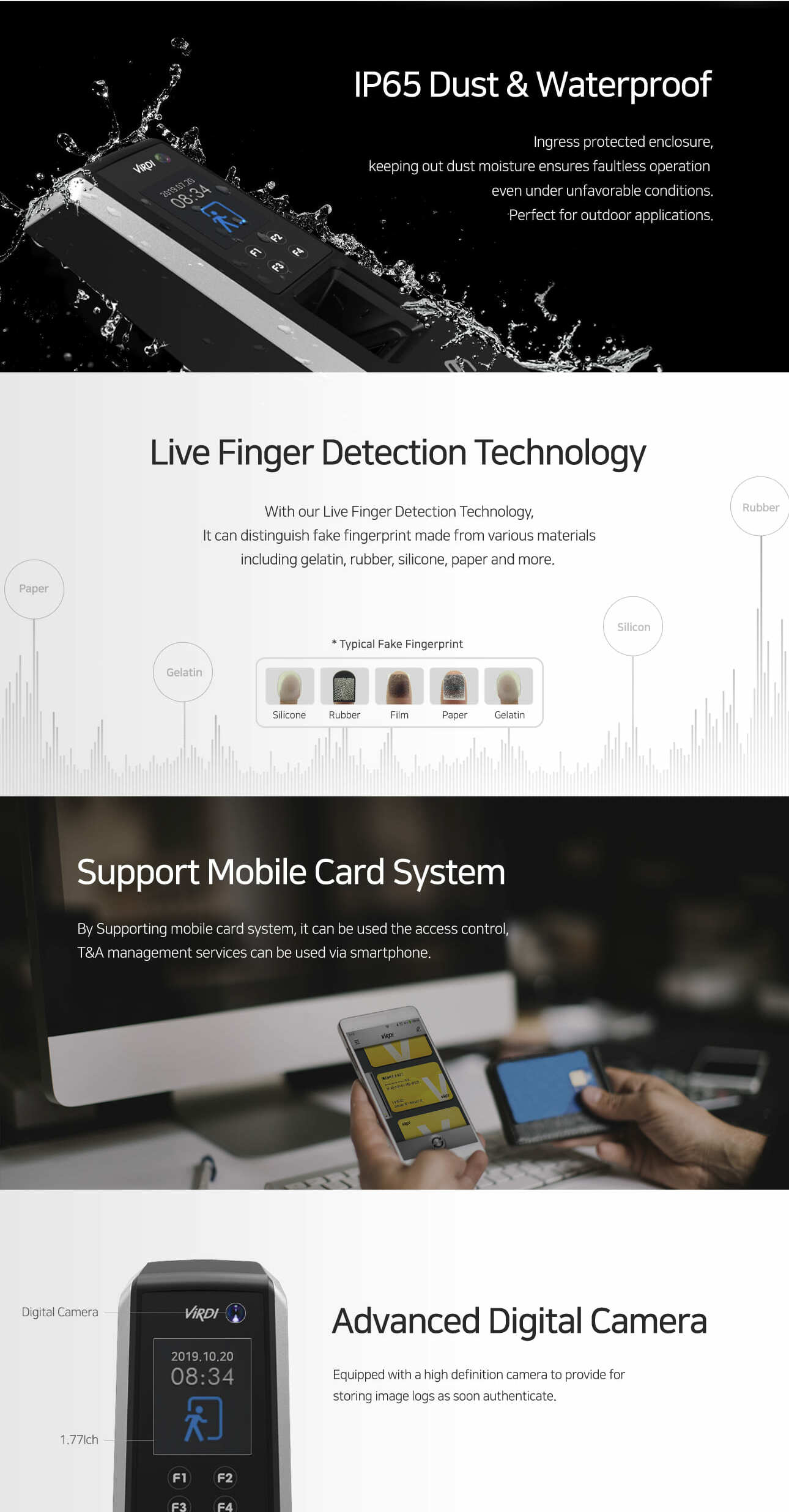

Dustproof / Waterproof

IP65 level of Dustproof / Waterproof structure

1. 77 inch Color Screen

Intuitive UI , simplifies operation

Digital Camera

Records a digital image of each user at
the time of the transaction. (640 x 480 pixel)

Specification

Detail Specification AC-2200/2200(H)

Authentication Method Biometric
Dust/ Water Resistance IP65
Memory Max Users 10,000
Fingerprints
(Templates)
10,000(1:1)
1,500(1:N)
*AC2200H: 10,000(1:1)
5,000(1:N)
Logs 100,000
Images 10,000
Communication With Server TCP/IP
Other Bluetooth/USB
Wireless LAN(Wi-Fi) X
Wiegand OUT O
RS232 X
RS485 OSDP
Wiegand IN O
Display LCD 1.77″Color LCD
Backlight O
Embedded Camera O
Card 125khz-EM O
HID Prox Optional
HID iclass O
13.56MHz Smart Card O
Keypad X
Function keys 4
Door Phone X
FP Sensor Platen Area 14.6 X 17.6 mm
Resolution 500 dpi
Authentication
Speed
(1:1) < 0.5 sec
1:N(1,000) < 1 sec
Dimension (W) X (H) X (D) mm 58 X 188 X 51.6
FRR /FAR 0.1% / 0.0001%
Operating Temperature -20 ~ 60℃
