AC-2100 PLUS

IP65 Fingerprint
Card Terminal

1. 77 inch Color Screen

Intuitive UI , simplifies operation

Features

Patented Live & Fake Finger Detection

·Optical sensor and algorithm detect fake fingers (paper,film, silicone, rubber and gelatin)

Open Supervised Device Protocol (OSDP)

·communication protocol support that allows peripheral devices to interface with control panels or other security mgmt. systems

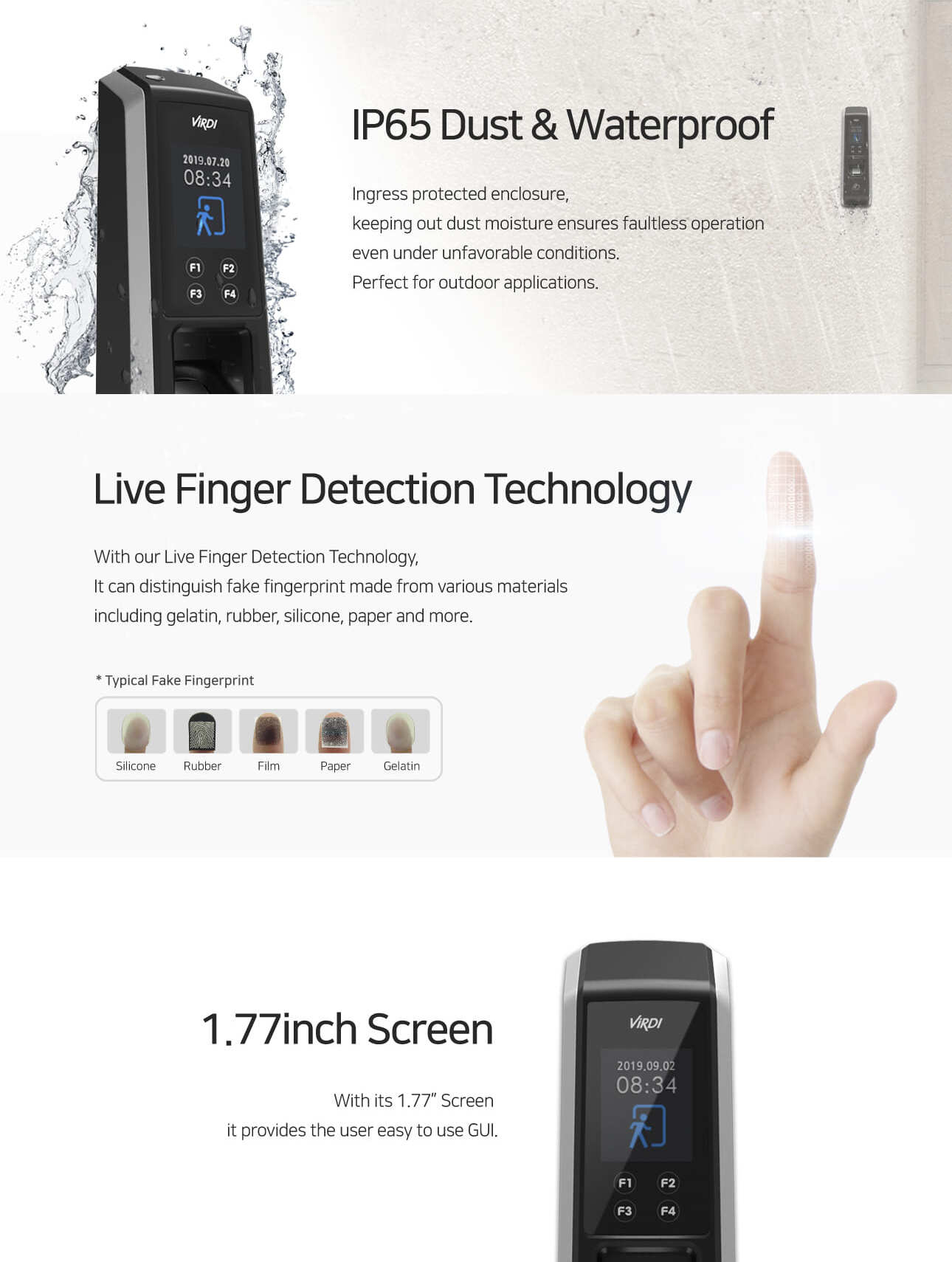

IP65 Dust / Water Resistance

·Outdoor installation

Specification

Detail Specification AC-2100 PLUS

Authentication Method Biometric
Dust/ Water Resistance IP65
Memory Max Users 10,000
Fingerprints
(Templates)
10,000(1:1)
1,500(1:N)
Logs 100,000
Images X
Communication With Server TCP/IP
Other USB
Wireless LAN(Wi-Fi) X
Wiegand OUT O
RS232 X
RS485 OSDP
Wiegand IN O
Display LCD 1.77″Color LCD
Backlight O
Embedded Camera X
Card 125khz-EM O
HID Prox Optional
HID iclass O
13.56MHz Smart Card O
Keypad X
Function keys 4
Door Phone X
FP Sensor Platen Area 14.6 X 17.6 mm
Resolution 500 dpi
Authentication
Speed
(1:1) < 0.2 sec
1:N(1,000) < 1 sec
Dimension (W) X (H) X (D) mm 58 X 188 X 51.6
FRR /FAR 0.1% / 0.0001%
Operating Temperature -20 ~ 60℃
